Pallet Amplifier 2010 Want complete broadcast transmitters?

*** NEW PRODUCTS ***
Click Here

All models are available from stock for immediate delivery, subjected to prior sales
UHF TV Amplifiers



New Lower Prices!

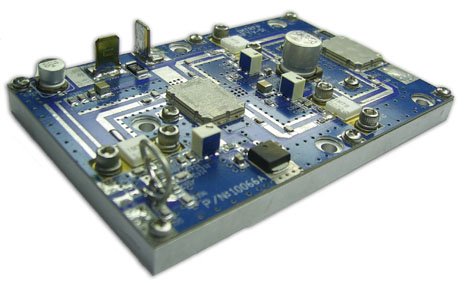

UHFTV-5
5 Watt MOSFET Power Amplifier

The UHF TV-5 is an ultra-linear Class A Pallet Amplifier. Three Gold Metallization system MOSFET gain stages provide.Typical Power gain of 26 dB at 7 Watts Peak-Sync. A Quadrature-combined Output provides an excellent match for the Pallet when integrating into a 50-Ohm system.



New Lower Prices!

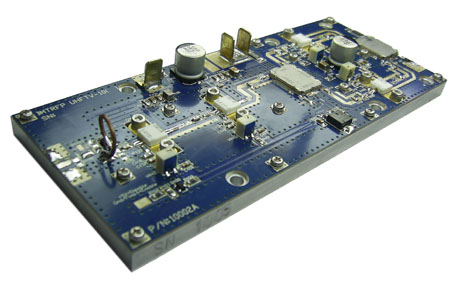

UHFTV-10
 10 Watt MOSFET UHF Pallet
Amplifier

The UHF TV-10 is an ultra-linear Class A Pallet Amplifier. Three Gold Metallization system
MOSFET gain stages provide Typical Power gain of 39 dB at 10 Watts Peak-Sync. A Quadrature-combined Output provides an excellent match for
the Pallet when integrating into a 50-Ohm system.



New Lower Prices!

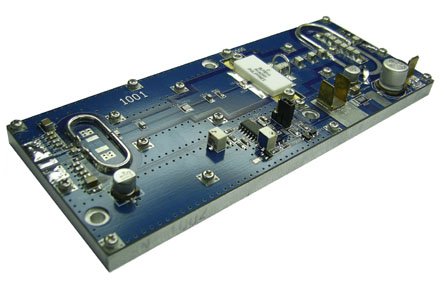

UHFTV-50

50 Watt MOSFET UHF Pallet Amplifier

The UHFTV-50 is a Linear Class AB pallet amplifier featuring Gold Metallized LDMOS-FET transistors.The UHFTV-50 can be used as an output PA @75W or a driver @30W.



New Lower Prices!

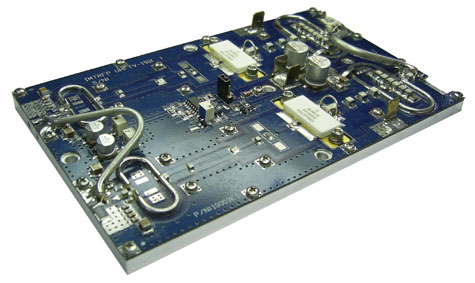

UHFTV-150

150 Watt MOSFET UHF Pallet Amplifier

The UHFTV-150 is a Linear Class AB pallet
amplifier featuring Gold Metallized LDMOS-FET
transistors. The UHFTV-150 can be used as an
output PA @75W or a driver @30W with IMD’s of -60dB.

VHF TV Amplifiers



New Lower Prices!

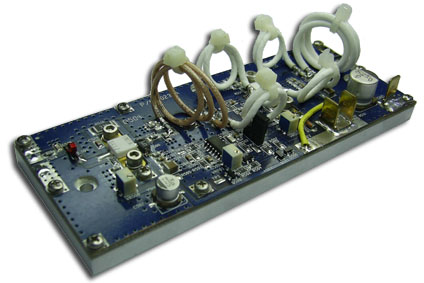

VHFTV-25-H

25Watt MOSFET High Band Pallet Amplifier

The VHFTV-25-H is a linear Class AB Pallet Amplifier featuring a Gold metallized LDMOS
Transistor with 50-ohm input and output impedance. The VHFTV-25-H provides 34 dB typical Gain with NTSC Full-Field Red Power output in excess of 25 Watts at -54 dBc IMD operating at +28VDC. The VHFTV-25-H offers No-Compromise performance for Band III VHF TV Transmitters integrators.



New Lower Prices!


VHFTV-200-H

200Watt MOSFET High Band Pallet Amplifier

The VHFTV-200-H is a linear Class AB Pallet
Amplifier featuring a Gold metallized LDMOS
Transistor, with 50-ohm input and output impedance. The VHFTV-200-H provides 16 dB typical Gain with NTSC Full-Field Red Power output in excess of 200 Watts at -54 dBc IMD operating at +28VDC. The VHFTV-200-H offers No-Compromise performance for Band III VHF TV Transmitters integrators.



New Lower Prices!

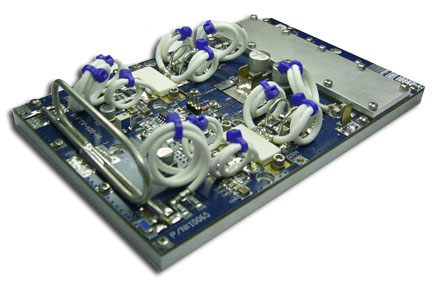

VHFTV-400-H

400Watt MOSFET High Band Pallet Amplifier

The VHFTV-400-H is a linear Class AB Pallet
Amplifier featuring Gold metallized LDMOS
Transistors, Quadrature combining with 50-ohm
input and output impedance. The VHFTV-400-H
provides 16 dB typical Gain with NTSC Full-Field Red Power output in excess of 400 Watts at -54 dBc IMD operating at +32VDC. The VHFTV-400-H offers No-Compromise performance for Band III VHF TV Transmitters integrators.

  We thank you very much for your interest in our Pallet Amplifiers. Aerocomm is manufacturer for various pallet amplifiers for FM-TV-Communication applications. In addition, we manufacture microwave components such as isolator/circulator (70 MHz to 26.5 GHz), termination, combiner and splitter. We also have trading division to support our regional customers ( Thailand and all Asian countries) who want to buy other products from USA, Europe and others. Please feel free to contact us if you want to buy any microwave, broadcast, telecom, satcom, GPS, radio, test instruments, etc. products from us. These imported products could be shipped either direct from our affiliates' warehouse in USA/Europe or our warehouse in Thailand.

FM Broadcast Amplifiers

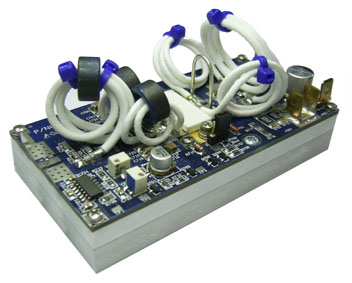

FM-350
350
Watt MOSFET FM Broadcast Pallet Amplifier

The FM-350 is a Class C Pallet Amplifier providing CW Power output in excess 350 Watts.
Featuring a rugged MOSFET Transistor, matched for 50-ohms input and output, the FM-350 provides an excellent value for the transmitter integrator. Thermal Tracking Bias allows the FM-350 to operate Class AB providing 300 Watts PEP with typical 2-tone IMD’s of -30dB making it an
excellent choice for the new DAB market.

New Lower Prices!

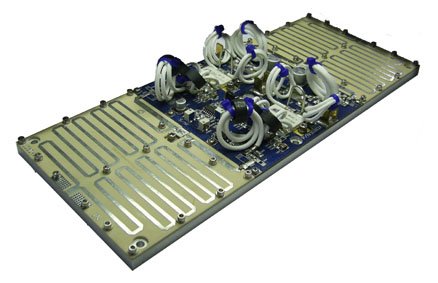

FM-700

700 Watt MOSFET FM Broadcast Pallet Amplifier

The FM-700 is a Class C Pallet Amplifier providing 700 Watts CW Power output.
Featuring MOSFET Transistors, matched for 50-ohms input and output. Thermal Tracking
Bias allows the FM-700 to operate Class AB providing 600 Watts PEP with typical 2-tone
IMD’s of -30dB, making it an excellent choice for the DAB market.


New Lower Prices!


FM-300

300
Watt MOSFET FM Broadcast
Pallet Amplifier

Aerocomm FM-300 ,300 Watt Pallet Amplifier is the simplest amplifier module on the maket.
   Designed to be integrated into amplifiers and transmitters for FM broadcasting,this amplifier has less than hassle and more efficiency than other:
            No coaxial cable
            Clamped transistor
            Up to 86% efficiency
            Highly consistent manufacturing



FM-1000

1000 Watt FM Broadcast Pallet Amplifier

   The FM-1000 is a 1000 Watt CW, 100% duty cycle
 pallet amplifier for FM Broadcast (88-108 MHz).
 This pallet is built on a copper heat spreader with a
 Gold plated printed circuit board, utilizing the latest  50Vdc,
EXTREMELY RUGGED, LDMOSFET        technology. Like all Broadcast transmitting             equipment this pallet amplifier is designed for       continuous 100%duty cycle operation.
       - 1000 Watts CW minimum
       - 50 Ohms input/output
       - Temperature Compensated Bias
       - 100% Duty Cycle
       - Copper Heat Spreader
       - No tuning


Data sheet



HF-300-10110

300Watt HF Broadband Pallet Amplifier

   The HF-300-10110 is a 300 W 10-110 MHz  broadband pallet amplifier,offering  outstanding  performance and reliability. The heart of this  pallet is the NXP BLF278 50V RF power  MOSFET providing high gain and RF power  output in a small 3” x 4.5” x 1.25” footprint. The  advanced Thermal Tracking bias circuitry allows  for operation in Class A or AB with stable gain  over temputure.
       - 300 Watts Class AB
       - Thermal tracking Bias
       - Broadband RF no tuning
       - Copper Heat Spreader

    Data sheet



HF-300

  300 Watt HF/VHF Broadband Pallet Amplifier

    The HF-300 is a 300W HF/VHF broadband pallet     amplifier, offering outstanding performance and    reliability. The heart of this pallet is the NXP BLF278 50V RF power MOSFET providing high  gain and RF  power output in a small 3” x 4.5” x  1.25” footprint. The advanced Thermal Tracking bias circuitry allows for  operation in Class A or AB  with stable gain over  temputure.
       -
300 Watts Class AB
       - Thermal tracking Bias
       - Broadband RF no tuning
       - Copper Heat Spreader

   Data sheet


LF-300

 300 Watt LF Broadband Pallet Amplifier

   The LF-300 is a 300W 0.5 - 10 MHz broadband pallet amplifier, offering outstanding performance and reliability. The heart of this pallet is the NXP BLF278 50V RF power MOSFET providing high gain and RF power output in a small 3” x 4.5” x 1.25” footprint. The advanced Thermal Tracking bias circuitry allows for operation in Class A or AB with stable gain over temputure.

- 300 Watts Class AB
       - Thermal tracking Bias
       - Broadband RF no tuning
       - Copper Heat Spreader


Data sheet




HF-1000+6

1000 Watt HF Pallet Amplifier

   The HF-1000+6 is a 1000 Watt, 100% duty cycle,  All Mode pallet amplifier for HF and 6 Meters (1.8  to 54MHz). This pallet is built on a copper heat  spreader with a Gold plated printed circuit board,  utilizing the latest 50V LDMOSFET technology. Like the amplifiers used in the Broadcast industry  this pallet is designed for continuous 100% duty  cycle.

- 1000 Watts All Mode
        - 50 Ohms input/output
        - Temperature compensated Bias
        - 100 % Duty Cycle
        - Copper Heat Spreader
        - No tuning


Data sheet



UHF800-70 cm

800 Watt UHF Pallet Amplifier

     The UHF800-70cm is an 800 Watt, 100% duty cycle, All Mode pallet amplifier for 70 cm (420-450 MHz). This pallet is built on a copper heat spreader with a Gold plated printed circuit board, utilizing the latest 50V LDMOSFET technology. Like the amplifiers used in the Broadcast industry this pallet is designed for continuous 100% duty cycle.
       - 800 Watts All Mode
       - 50 Ohms input/output
       - Temperature compensated Bias
       - 100 % Duty Cycle
       - Copper Heat Spreader
       - No tuning

     Data sheet



VHF-1000-2M

1000 Watt VHF Pallet Amplifier

      The VHF-1000-2M is a 1000 Watt, 100% duty  cycle, All Mode pallet amplifier for 2 Meters  (144-148 MHz). This pallet is built on a copper heat  spreader with a Gold plated printed circuit board,  utilizing the latest 50V LDMOSFET technology.  Like the amplifiers used in the Broadcast industry  this pallet is designed for continuous 100% duty  cycle operation.
        - 1000 Watts All Mode
        - 50 Ohms input/output
        - Temperature compensated Bias
        - 100 % Duty Cycle
        - Copper Heat Spreader
        - No tuning

     Data sheet

Amplifiers Modules

All our pallets could be ordered with enclosure (amplifier modules). Please contact us for more details.

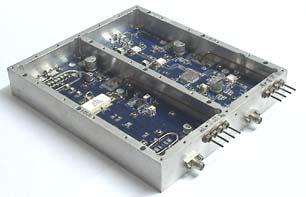

(picture shown 75 watts amplifier module, using UHFTV-10 and UHFTV-50 boards)



Contact Aerocomm for free catalog



    We export our products through worldwide representative and dealer network. For countries not covered by our representative and dealer, please contact us directly.


     Our latest 2010 product catalog is available from our representative and dealer. Please send us an email to obtain the free catalog or download here.

     Please visit company homepage to learn more about our other businesses. Aerocomm's import division is exclusive representative and dealer for many high technology products from USA and Europe. We design and import system and products such as GPS (Global Positioning System), Laser Range Finder, Precision Time & Frequency, Avionics Telecom, Plasma Physics, Microwave Calibration System, Microwave components and systems, etc.
