AerocommMW-Isolator-Circulator

Model : X - X XXX . XXX - OPT . XX - XX - ( X X X )

Product Type

Band Designation Center Frequency

Frequency Range

Option Number (If necessary)

Specify Input Port Number of Ports and Configuration

Signal Rotation

Specify Connector Type / Gender or Power Rating for Load In Sequence of Port 1-2-3-4 (if 4 ports)

For Coaxial

C=Circulator

I=Isolator

L=Load

For Drop-in

DCx=Circulator Type x

DIx=Isolator Type x

0-250

250-500

0.5-1

1-2

2-3

3-4

4-6

6-8

8-10

10-20

20-40

MHz

GHz

Start . Stop Frequency

Indicates non-standard specifications, refer to drawing for full specifications

Omitted for standard model

A, B, C = 3 Port

H, I, J, K = 4 Port (H - Resembled)

P, Q, R, S = 4 Port (PI - Resembled)

1 = CW

2 = CCW

Connectors / Pin / Tab

F = Female

M = Male

P = Pin

S = Surface Moun Tab

T = Straight Tab

1 = SMA

2 = N 0.5" flange

3 = N 0.687" flange

4 = N 1.0" flange

5 = TNC

6 = BNC

7 = SMB

8 = pin (0.5mm. dia)

9 = tab (size in mm.) (0.635Wx1.8Lx0.127T)

a = SMA removable

b = N bulk head

c = SMA bulk head

Flange Loads

L1a = 1 Watt

L10a = 10 Watts

: :

Built-in Loads

L1b = 1 Watt

L10b = 10 Watts

: :

Uncovered Loads

L1c = 1 Watt

L10c = 10 Watts

: :

Cylindrical Looads

L1d = 1 Watt

L10d = 10 Watts

: :

Use power rating for higher power loads such as L15a for 15 watts flange load or 100a for 100 watts flange load or L100c for 100 watts uncovered load, etc.

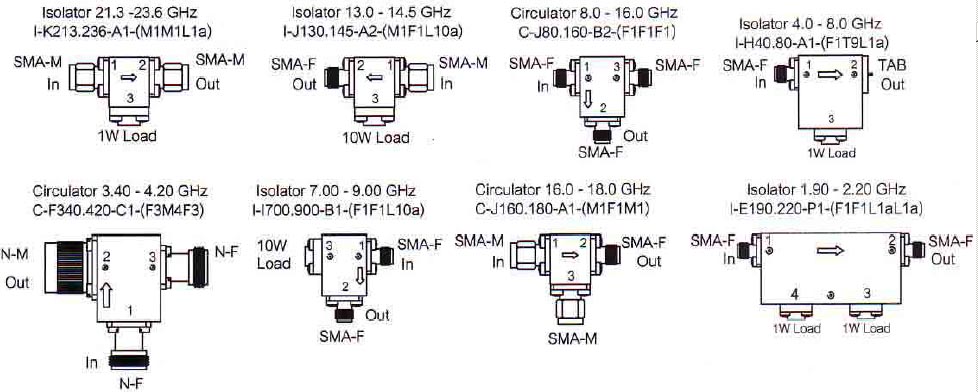

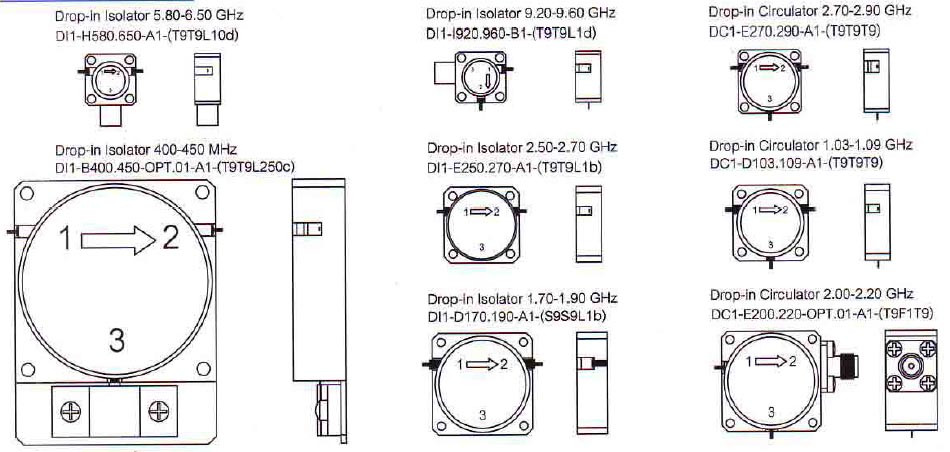

Model Numbering System For Coax and Drop-in Isolator & Circulator
