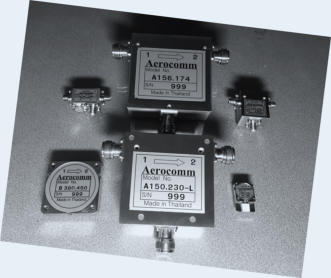

ISOLATOR/CIRCULATOR Aerocomm’s standard coaxial , drop-in (tab or surface mount terminal) and high power ferrite devices are designed and developed for both commercial and military applications. Standard designs are a compromise among size, electrical performances and cost. Any specific requirements can be provided on special order.    General Specifications  Models and specifications provided in catalog are standard design for customer reference.  Non-standard designs can be engineered upon special order.    Operating Frequency Ranges 70 MHz to 26.5 GHz (selected frequency bands). Devices covering frequency less than 70 MHz and above 26.5 GHz are being developed. Please visit our website often to see new developments. Narrow and octave bandwidth are standard. Octave-plus and other frequency bands are available on special order.  Tunable High power narrowband coaxial isolator/circulators are available on special order.  Ultra-wide band (peripheral mode) will be available soon.   Double Junction Isolator/Circulator  Single junction (3 port) is standard. Specifications provided in the catalog are for standard 3 port devices. All standard models can be built as double junction devices on special order.    Operating Temperature Ranges  0 to +55° C is standard. Other operating temperature ranges are available on special order.   Handling Power  25 and 50 WCW are standard, see specifications for each model in catalog. Higher power such as 100 , 150 , 200 , 250 and 300 WCW are available on special order. All standard models are not furnished with heat sink. Heat sink and forced air cooling is available on special order.   Connectors and Terminations SMA-female per MIL-C-39012 are standard. Other connectors such as SMA-male, TNC, N, etc. are available on special order. Removable connectors are available on special order for drop-in mount application. 1 watt built-in termination is standard.  5, 10, 100 or higher watt terminations are available on special order. All connectors are 50 Ohms. Special 75 Ohms connectors are available on special order.   Magnetic & EMI Shielding  All units are magnetically shielded as standard. Full magnetic shielding and EMI shielding are available on special order.   Finish & Test Data Standard coaxial models are stainless steel, painted black is optional. Drop-in models are nickel plated. Other finish is available on special order. Each unit is individually tested to verify conformance with all specifications.  All units are supplied with test data at room temperature. Test data at other temperature ranges is available on special order.   Special Requirements Special requirements such as low insertion loss , high isolation , smaller size , etc. can be ordered to meet your stringent needs. Please consult our engineering division before placing orders. Drawings are available on request.
